File storage with Cloudflare R2

Cloudflare R2 is S3-compatible object storage offering zero egress fees, designed for storing and serving large amounts of unstructured data like images, videos, and documents globally.

This guide demonstrates how to integrate Cloudflare R2 with Neon by storing file metadata in your Neon database, while using R2 for file storage.

Setup steps

Create a Neon project
1. Navigate to pg.new to create a new Neon project.
2. Copy the connection string by clicking the Connect button on your Project Dashboard. For more information, see Connect from any application.
Create a Cloudflare account and R2 bucket
1. Sign up for or log in to your Cloudflare account.
2. Navigate to R2 in the Cloudflare dashboard sidebar.

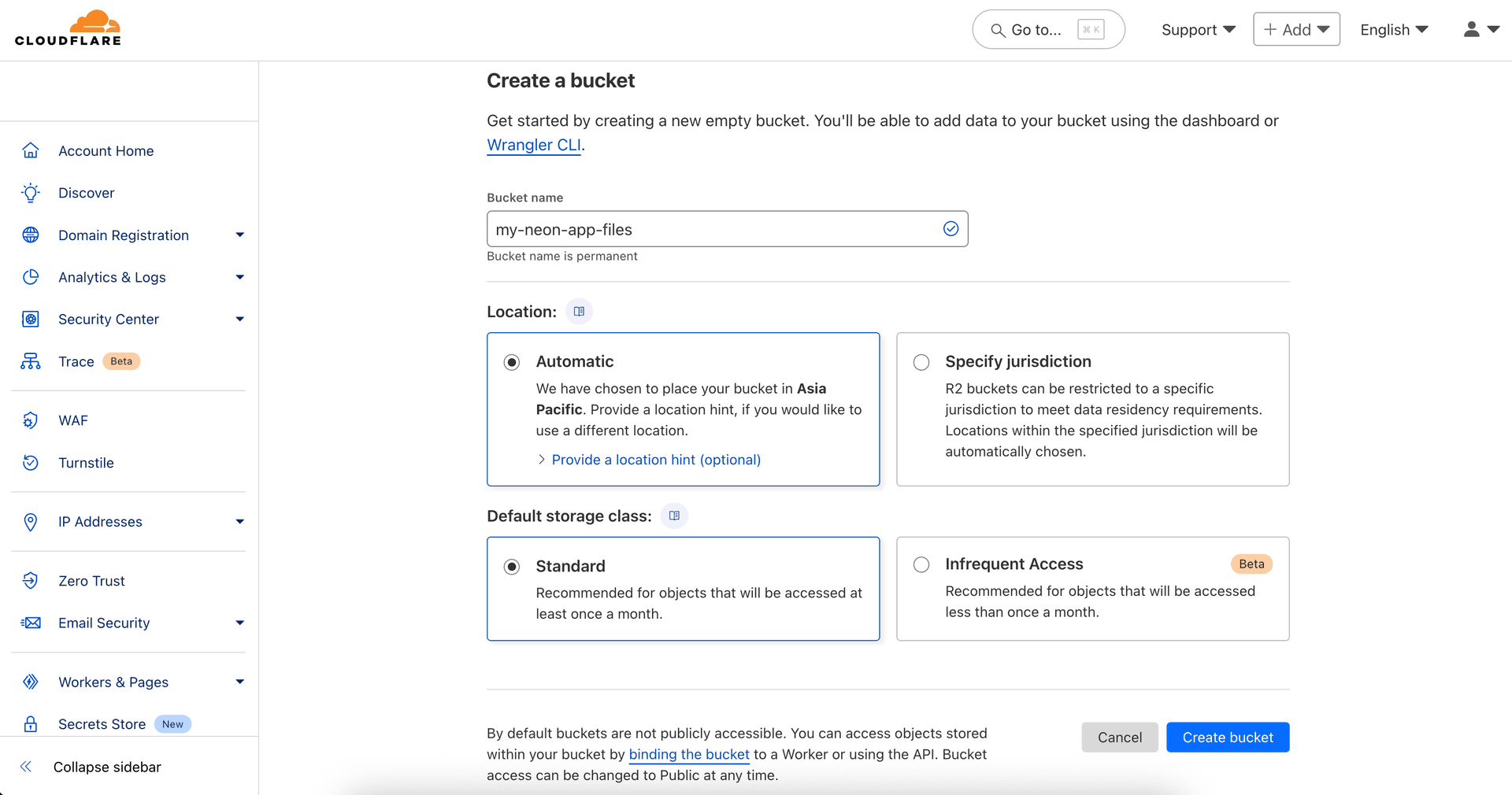

3. Click Create bucket, provide a unique bucket name (e.g., my-neon-app-files), and click Create bucket.
4. Generate R2 API credentials (Access Key ID and Secret Access Key) by following Create an R2 API Token. Select Object Read & Write permissions. Copy these credentials securely.
5. Obtain your Cloudflare Account ID by following Find your Account ID.
6. For this example, enable public access to your bucket URL by following Allow public access to your bucket. Note your bucket's public URL (e.g., https://pub-xxxxxxxx.r2.dev).

  Public access
  Public access makes all objects readable via URL; consider private buckets and signed URLs for sensitive data in production.
Configure CORS for client-side uploads
If your application involves uploading files directly from a web browser using the generated presigned URLs, you must configure Cross-Origin Resource Sharing (CORS) on your R2 bucket. CORS rules tell R2 which web domains are allowed to make requests (like PUT requests for uploads) to your bucket. Without proper CORS rules, browser security restrictions will block these direct uploads.
Follow Cloudflare's guide to Configure CORS for your bucket. You can add rules via R2 Bucket settings in the Cloudflare dashboard.
Here’s an example CORS configuration allowing PUT uploads and GET requests from your deployed frontend application and your local development environment:
```
[
  {
    "AllowedOrigins": [
      "https://your-production-app.com", // Replace with your actual frontend domain
      "http://localhost:3000" // For local development
    ],
    "AllowedMethods": ["PUT", "GET"]
  }
]
```
Create a table in Neon for file metadata
We need a table in Neon to store metadata about the objects uploaded to R2.
1. Connect to your Neon database using the Neon SQL Editor or a client like psql. Here is an example SQL statement to create a simple table including the object key, URL, user ID, and timestamp:
```
CREATE TABLE IF NOT EXISTS r2_files (
    id SERIAL PRIMARY KEY,
    object_key TEXT NOT NULL UNIQUE, -- Key (path/filename) in R2
    file_url TEXT NOT NULL,          -- Publicly accessible URL
    user_id TEXT NOT NULL,           -- User associated with the file
    upload_timestamp TIMESTAMPTZ DEFAULT NOW()
);
```
2. Run the SQL statement. You can add other relevant columns (file size, content type, etc.) depending on your application needs.
Securing metadata with RLS
If you use Neon's Row Level Security (RLS), remember to apply appropriate access policies to the r2_files table. This controls who can view or modify the object references stored in Neon based on your RLS rules.
Note that these policies apply only to the metadata in Neon. Access control for the objects within the R2 bucket itself is managed via R2 permissions, API tokens, and presigned URL settings if used.

Upload files to R2 and store metadata in Neon

A common pattern with S3-compatible storage like R2 involves presigned upload URLs. Your backend generates a temporary, secure URL that the client uses to upload the file directly to R2. Afterwards, your backend saves the file's metadata to Neon.

This requires two backend endpoints:

/presign-upload: Generates the temporary presigned URL for the client to upload a file directly to R2.
/save-metadata: Records the metadata in Neon after the client confirms a successful upload to R2.

We'll use Hono for the server, @aws-sdk/client-s3 and @aws-sdk/s3-request-presigner for R2 interaction, and @neondatabase/serverless for Neon.

First, install the necessary dependencies:

npm install @aws-sdk/client-s3 @aws-sdk/s3-request-presigner @neondatabase/serverless @hono/node-server hono dotenv

Create a .env file:

# R2 Credentials & Config
R2_ACCOUNT_ID=your_cloudflare_account_id
R2_ACCESS_KEY_ID=your_r2_api_token_access_key_id
R2_SECRET_ACCESS_KEY=your_r2_api_token_secret_access_key
R2_BUCKET_NAME=your_r2_bucket_name # my-neon-app-files if following the example
R2_PUBLIC_BASE_URL=https://your-bucket-public-url.r2.dev # Your R2 bucket public URL

# Neon Connection String
DATABASE_URL=your_neon_database_connection_string

The following code snippet demonstrates this workflow:

import { serve } from '@hono/node-server';
import { Hono } from 'hono';
import { S3Client, PutObjectCommand } from '@aws-sdk/client-s3';
import { getSignedUrl } from '@aws-sdk/s3-request-presigner';
import { neon } from '@neondatabase/serverless';
import 'dotenv/config';
import { randomUUID } from 'crypto';

const R2_ENDPOINT = `https://${process.env.R2_ACCOUNT_ID}.r2.cloudflarestorage.com`;
const R2_BUCKET = process.env.R2_BUCKET_NAME;
const R2_PUBLIC_BASE_URL = process.env.R2_PUBLIC_BASE_URL; // Ensure no trailing '/'
const s3 = new S3Client({
  region: 'auto',
  endpoint: R2_ENDPOINT,
  credentials: {
    accessKeyId: process.env.R2_ACCESS_KEY_ID,
    secretAccessKey: process.env.R2_SECRET_ACCESS_KEY,
  },
});

const sql = neon(process.env.DATABASE_URL);
const app = new Hono();

// Replace this with your actual user authentication logic, by validating JWTs/Headers, etc.
const authMiddleware = async (c, next) => {
  c.set('userId', 'user_123'); // Example: Get user ID after validation
  await next();
};

// 1. Generate Presigned URL for Upload
app.post('/presign-upload', authMiddleware, async (c) => {
  try {
    const { fileName, contentType } = await c.req.json();
    if (!fileName || !contentType) throw new Error('fileName and contentType required');

    const objectKey = `${randomUUID()}-${fileName}`;
    const publicFileUrl = R2_PUBLIC_BASE_URL ? `${R2_PUBLIC_BASE_URL}/${objectKey}` : null;

    const command = new PutObjectCommand({
      Bucket: R2_BUCKET,
      Key: objectKey,
      ContentType: contentType,
    });
    const presignedUrl = await getSignedUrl(s3, command, { expiresIn: 300 });

    return c.json({ success: true, presignedUrl, objectKey, publicFileUrl });
  } catch (error) {
    console.error('Presign Error:', error.message);
    return c.json({ success: false, error: 'Failed to prepare upload' }, 500);
  }
});

// 2. Save Metadata after Client Upload Confirmation
app.post('/save-metadata', authMiddleware, async (c) => {
  try {
    const { objectKey, publicFileUrl } = await c.req.json();
    const userId = c.get('userId');
    if (!objectKey) throw new Error('objectKey required');

    const finalFileUrl =
      publicFileUrl ||
      (R2_PUBLIC_BASE_URL ? `${R2_PUBLIC_BASE_URL}/${objectKey}` : 'URL not available');

    await sql`
      INSERT INTO r2_files (object_key, file_url, user_id)
      VALUES (${objectKey}, ${finalFileUrl}, ${userId})
    `;
    console.log(`Metadata saved for R2 object: ${objectKey}`);
    return c.json({ success: true });
  } catch (error) {
    console.error('Metadata Save Error:', error.message);
    return c.json({ success: false, error: 'Failed to save metadata' }, 500);
  }
});

const port = 3000;
serve({ fetch: app.fetch, port }, (info) => {
  console.log(`Server running at http://localhost:${info.port}`);
});

Explanation

Setup: Initializes the Neon database client (sql), the Hono web framework (app), and the AWS S3 client (s3) configured for R2 using environment variables.
Authentication: A placeholder authMiddleware is included. Crucially, this needs to be replaced with real authentication logic. It currently just sets a static userId for demonstration.
Upload endpoints:
- /presign-upload: Generates a temporary secure URL (presignedUrl) that allows uploading a file with a specific objectKey and contentType directly to R2 using @aws-sdk/client-s3. It returns the URL, key, and public URL.
- /save-metadata: Called by the client after it successfully uploads the file to R2. It saves the objectKey, the final file_url, and the userId into the r2_files table in Neon using @neondatabase/serverless.

Testing the upload workflow
Testing the presigned URL flow involves multiple steps:
1. Get presigned URL: Send a POST request to your /presign-upload endpoint with a JSON body containing fileName and contentType.
```
curl -X POST http://localhost:3000/presign-upload \
     -H "Content-Type: application/json" \
     -d '{"fileName": "test-image.png", "contentType": "image/png"}'
```
  You should receive a JSON response with a presignedUrl, objectKey, and publicFileUrl:
```
{
  "success": true,
  "presignedUrl": "https://<ACCOUNT_ID>.r2.cloudflarestorage.com/<BUCKET_NAME>/<GENERATED_OBJECT_KEY>?X-Amz-Algorithm=...",
  "objectKey": "<GENERATED_OBJECT_KEY>",
  "publicFileUrl": "https://pub-<HASH>.r2.dev/<GENERATED_OBJECT_KEY>"
}
```
  Note the presignedUrl, objectKey, and publicFileUrl from the response. You will use these in the next steps.
2. Upload file to R2: Use the received presignedUrl to upload the actual file using an HTTP PUT request.
```
curl -X PUT "<PRESIGNED_URL>" \
     --upload-file /path/to/your/test-image.png \
     -H "Content-Type: image/png"
```
  A successful upload typically returns HTTP 200 OK with no body.
3. Save metadata: Send a POST request to your /save-metadata endpoint with the objectKey and publicFileUrl obtained in step 1.
```
curl -X POST http://localhost:3000/save-metadata \
     -H "Content-Type: application/json" \
     -d '{"objectKey": "<OBJECT_KEY>", "publicFileUrl": "<PUBLIC_URL>"}'
```
  You should receive a JSON response indicating success:
```
{ "success": true }
```
Expected outcome:
- The file is uploaded to your R2 bucket. You can verify this in the Cloudflare dashboard or by accessing the publicFileUrl if your bucket is public.
- A new row appears in your r2_files table in Neon containing the object_key and file_url.
You can now integrate API calls to these endpoints from various parts of your application (e.g., web clients using JavaScript's fetch API, mobile apps, backend services) to handle file uploads.
Accessing file metadata and files
Storing metadata in Neon allows your application to easily retrieve references to the files hosted on R2.
Query the r2_files table from your application's backend when needed.
Example SQL query:
Retrieve files for user 'user_123':
```
SELECT
    id,             -- Your database primary key
    object_key,     -- Key (path/filename) in the R2 bucket
    file_url,       -- Publicly accessible URL
    user_id,        -- User associated with the file
    upload_timestamp
FROM
    r2_files
WHERE
    user_id = 'user_123'; -- Use actual authenticated user ID
```
Using the data:
- The query returns rows containing the file metadata stored in Neon.
- The file_url column contains the direct link to access the file.
- Use this file_url in your application (e.g., <img> tags, API responses, download links) wherever you need to display or provide access to the file.

  Private buckets
  For private R2 buckets, store only the object_key and generate presigned read URLs on demand using a similar backend process.
This pattern separates file storage and delivery (handled by R2) from structured metadata management (handled by Neon).
